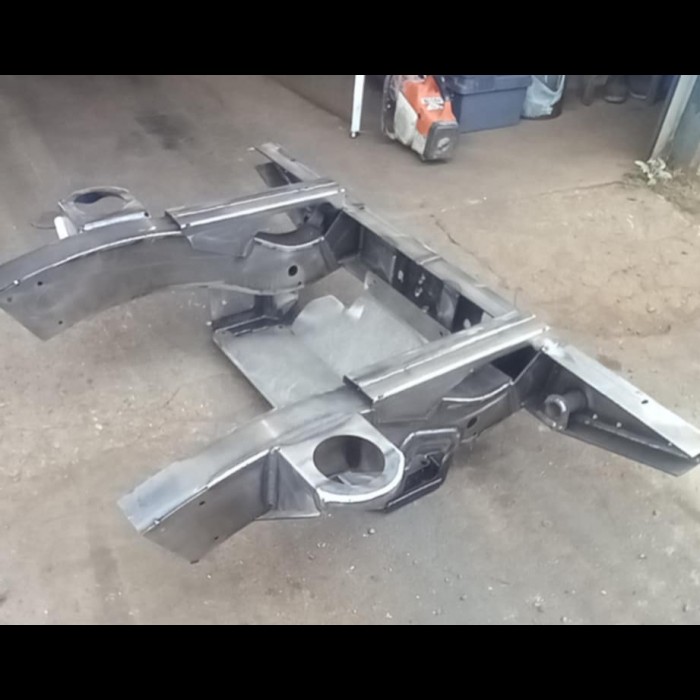

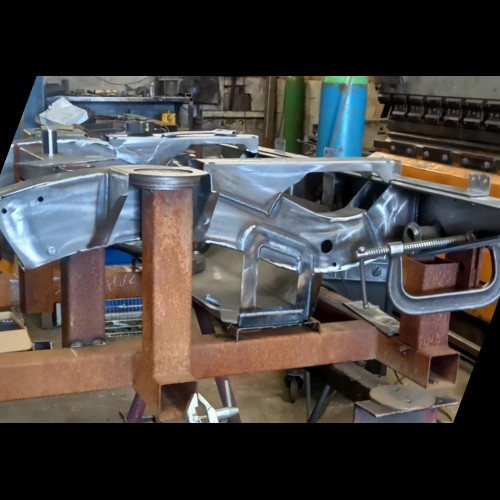

THIS IS A COMPLETE REAR 1/4 CHASSIS FOR TD5 90

COMES WITH ONE OF OUR POPULAR 5MM HD CROSSMEMBER FULLY ASSEMBLED AND WELDED READY TO FIT

WE CAN SUPPLY WITH ETHER STYLE BODY MOUNTS. BOLT ON OR FIXED WELDED TYPE

CROSSMEMBER HAS ALL FACTORY HOLES IN ORDER TO MAINTAIN STANDARD FACTORY LOOK

HD RECOVERY POINTS ALSO AN OPTION

when repairing a td5 90 crossmember you need to remove the fuel tank

this is an issue as tanks are fitted from the top when the vehicle was assembled and don't come out the bottom very easily

this section design also makes joining of the chassis much easeyer due to the position we intend you to make the join between the shock mount and middle crossmember

you simple unbolt then cut the old rusty back end off your car with fuel tank in situ

then remove tank from the top of cut section

refit tank into ready painted and assembled new section

offer into place by lining the holes in the new section with the holes on the vehicle chassis weld in place and refit components and away you go
